STP85NF55L N-CHANNEL POWER MOSFET

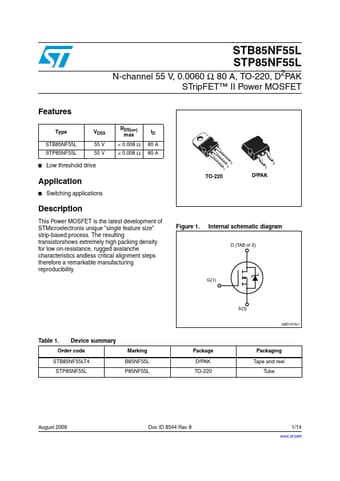

📥 Download Datasheet Datasheet Preview Page 1

Description

N-CHANNEL 55V - 0.0060 Ω - 80A D2PAK/TO-220 STripFET™ II POWER MOSFET TYPE STP85NF55L STB85NF55L s s s STB85NF55L STP85NF55L VDSS 55 V 55 V RDS(on).
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

📥 Download Datasheet

Preview of STP85NF55L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC CONVERTERS s AUTOMOTIVE ENVIRONMENT Ordering Information SALES TYPE STP85NF55L STB85NF55L STB85NF55LT4 MARKING P85NF55L B85NF55L B85NF55L D2PAK TO-263 (Suffix “T4”) TO-220 ADD SUFFIX “T4” FOR ORDERING IN TAPE & REEL INTERNAL
