STP85NF3LL N - CHANNEL POWER MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

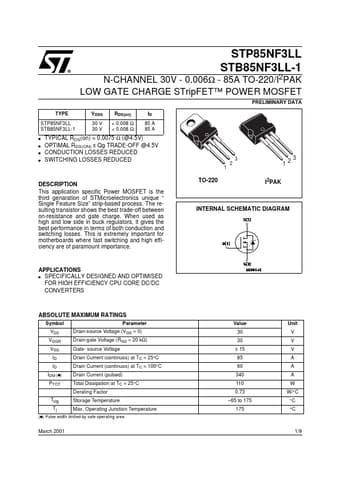

N-CHANNEL 30V - 0.006Ω - 85A TO-220/I2PAK LOW GATE CHARGE STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STP85NF3LL STB85NF3LL-1 s s s s STP85NF3LL STB.
This application specific Power MOSFET is the third genaration of STMicroelectronics unique “ Single Feature Size” strip-based process.

📥 Download Datasheet

Preview of STP85NF3LL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s SPECIFICALLY DESIGNED AND OPTIMISED FOR HIGH EFFICIENCY CPU CORE DC/DC CONVERTERS ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos) at TC = 25°C Drain Cur
