STP85NF55 Datasheet - ST Microelectronics

N-CHANNEL POWER MOSFET

STP85NF55 Features

* Order codes VDS @ TJmax RDS(on) max ID STB85NF55T4 STP85NF55 55 V 0.008 Ω 80 A

* Designed for automotive applications and AEC-Q101 qualified

* Exceptional dv/dt capability

* 100% avalanche tested Figure 1. Internal schematic diagram Applications

* Switching

STP85NF55 General Description

* 6 $0Y These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DCDC co.

STP85NF55 Datasheet (904.60 KB)

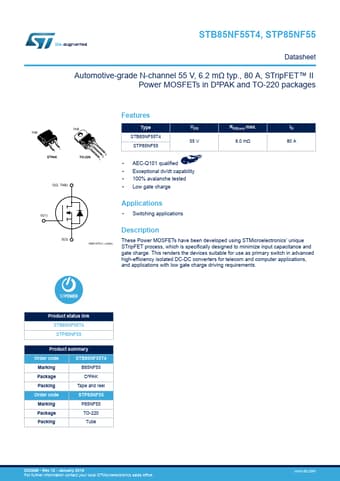

STP85NF55 Datasheet Preview — Preview of STP85NF55 PDF

Datasheet Details

Part number:

STP85NF55

Manufacturer:

STMicroelectronics ↗

File Size:

904.60 KB

Description:

N-channel power mosfet.
STB85NF55, STP85NF55 Automotive-grade N-channel 55 V, 0.0062 Ω typ., 42 A, STripFET™ II 2 Power MOSFETs in D PAK and TO-220 packages Datasheet
