STPS3060CW

POWER SCHOTTKY RECTIFIER

STPS3060CW Features

* HIGH REVERSE VOLTAGE NEGLIGIBLE SWITCHING LOSSES LOW FORWARD VOLTAGE DROP LOW THERMAL RESISTANCE 2 x15 A 60 V 0.65 V A1 K A2 A2 K A1 DESCRIPTION Dual center tap schottky rectifier suited for switchmode power supply and high frequency DC to DC converters. Packaged in TO-247 this device is intended

STPS3060CW General Description

Dual center tap schottky rectifier suited for switchmode power supply and high frequency DC to DC converters. Packaged in TO-247 this device is intended for use in high frequency inverters. ABSOLUTE RATINGS (limiting values) Symbol VRRM IF(RMS) IF(AV) IFSM IRRM Tstg Tj dV/dt Parameter Repetitive pea.

STPS3060CW Datasheet (48.55 KB)

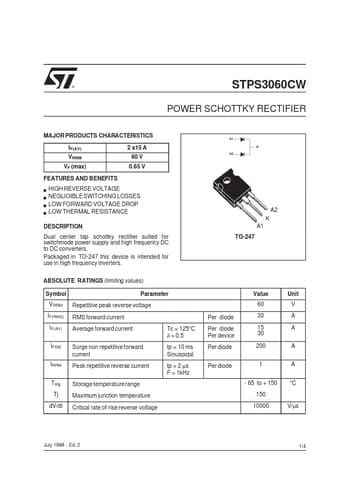

Preview of STPS3060CW PDF

Datasheet Details

Part number:

STPS3060CW

Manufacturer:

STMicroelectronics ↗

File Size:

48.55 KB

Description:

Power schottky rectifier.
