STPS340B, STPS340 3A power Schottky rectifier

STPS340B Description

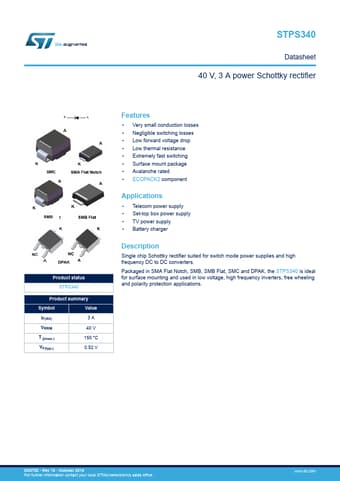

STPS340 Datasheet 40 V, 3 A power Schottky rectifier Product status STPS340 Product summary Symbol Value IF(AV) 3A VRRM 40 V T j(max.) 150 °.
Single chip Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS340B Features

* Very small conduction losses
* Negligible switching losses
* Low forward voltage drop
* Low thermal resistance
* Extremely fast switching
* Surface mount package
* Avalanche rated

STPS340B Applications

* Telecom power supply
* Set-top box power supply
* TV power supply

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS340B, STPS340. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS340B, STPS340
Manufacturer
STMicroelectronics ↗
File Size
404.28 KB
Datasheet
STPS340_STMicroelectronics.pdf
Description
3A power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS340B, STPS340.
Please refer to the document for exact specifications by model.
