STPS340S Datasheet - ST Microelectronics

3A power Schottky rectifier

STPS340S Features

* Very small conduction losses

* Negligible switching losses

* Low forward voltage drop

* Low thermal resistance

* Extremely fast switching

* Surface mount package

* Avalanche rated

* ECOPACK2 component Applications

* Telecom po

STPS340S General Description

Single chip Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters. Packaged in SMA Flat Notch, SMB, SMB Flat, SMC and DPAK, the STPS340 is ideal for surface mounting and used in low voltage, high frequency inverters, free wheeling and polarity protection app.

STPS340S Datasheet (404.28 KB)

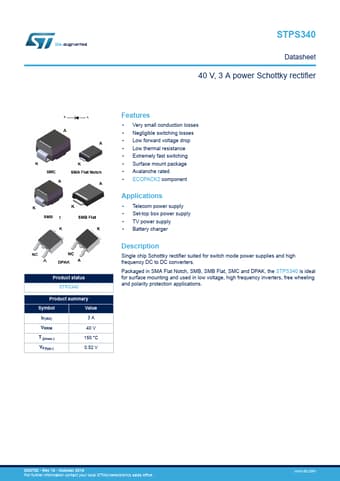

STPS340S Datasheet Preview — Preview of STPS340S PDF

Datasheet Details

Part number:

STPS340S

Manufacturer:

STMicroelectronics ↗

File Size:

404.28 KB

Description:

3a power schottky rectifier.
STPS340 Datasheet 40 V, 3 A power Schottky rectifier Product status STPS340 Product summary Symbol Value IF(AV) 3A VRRM 40 V T j(max.) 150 °.
