STTH1302xxx Datasheet, Diode, ST Microelectronics

STTH1302xxx Features

  • Diode s Suited for SMPS s Low losses s Low forward and reverse recovery times s High surge current capability s High junction temperature s Insulated package: TO-220FPAB: Insulation voltage =

PDF File Details

Part number:

STTH1302xxx

Manufacturer:

STMicroelectronics ↗

File Size:

114.65kb

Download:

📄 Datasheet

Description:

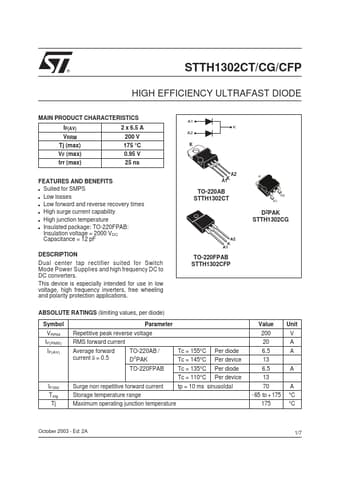

High efficiency ultrafast diode. Dual center tap rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters. This device is especially int

Datasheet Preview: STTH1302xxx 📥 Download PDF (114.65kb)
Page 2 of STTH1302xxx Page 3 of STTH1302xxx

STTH1302xxx Application

  • Applications A1 K A2 K A2 A1K TO-220AB STTH1302CT K A2 A1 D2PAK STTH1302CG A2 K A1 TO-220FPAB STTH1302CFP ABSOLUTE RATINGS (limiting values, p
