STV7801S - PLASMA DATA POWER SWITCH

ST Microelectronics

The STV7801S by ST Microelectronics is a PLASMA DATA POWER SWITCH. Below is the official datasheet preview.

📥 Download Datasheet

STV7801S PLASMA DATA POWER SWITCH by ST Microelectronics - Datasheet Preview — Official preview page of the **STV7801S** PLASMA DATA POWER SWITCH datasheet (ST Microelectronics).

Datasheet Details

Part number	STV7801S
Manufacturer	STMicroelectronics
File Size	196.08 KB
Description	PLASMA DATA POWER SWITCH
Datasheet	STV7801S_STMicroelectronics.pdf

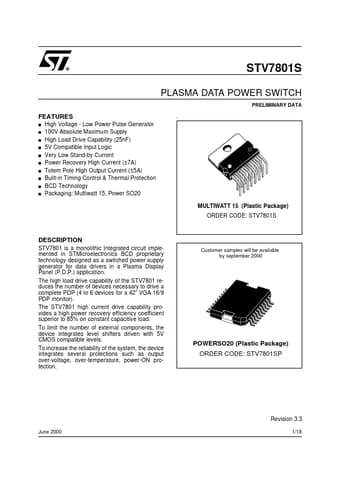

Additional preview pages of the STV7801S datasheet.

STV7801S Product details

Description

STV7801 is a monolithic integrated circuit implemented in STMicroelectronics BCD proprietary technology designed as a switched power supply generator for data drivers in a Plasma Display Panel (P.D.P.) application.

Features

s s s s s s s s s s . High Voltage - Low Power Pulse Generator 100V Absolute Maximum Supply High Load Drive Capability (25nF) 5V Compatible Input Logic Very Low Stand-by Current Power Recovery High Current (±7A) Totem Pole High Output Current (±5A) Built-in Timing Control & Thermal Protection BCD Technology Packaging: Multiwatt 15, Power SO20.
