GD100SGY120D6S IGBT

📥 Download Datasheet  Datasheet Preview Page 1

Description

GD100SGY120D6S STARPOWER SEMICONDUCTOR GD100SGY120D6S 1200V/100A 1 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

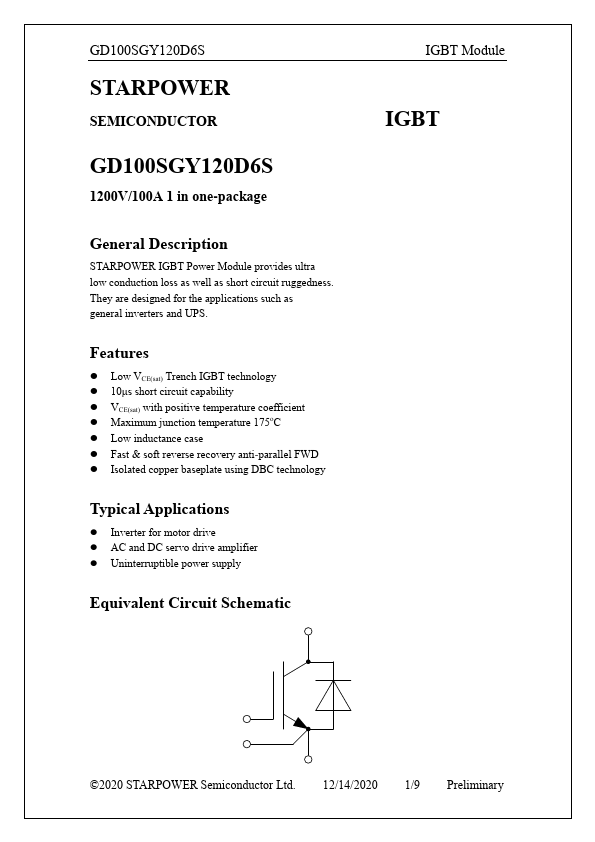

Preview of GD100SGY120D6S PDF

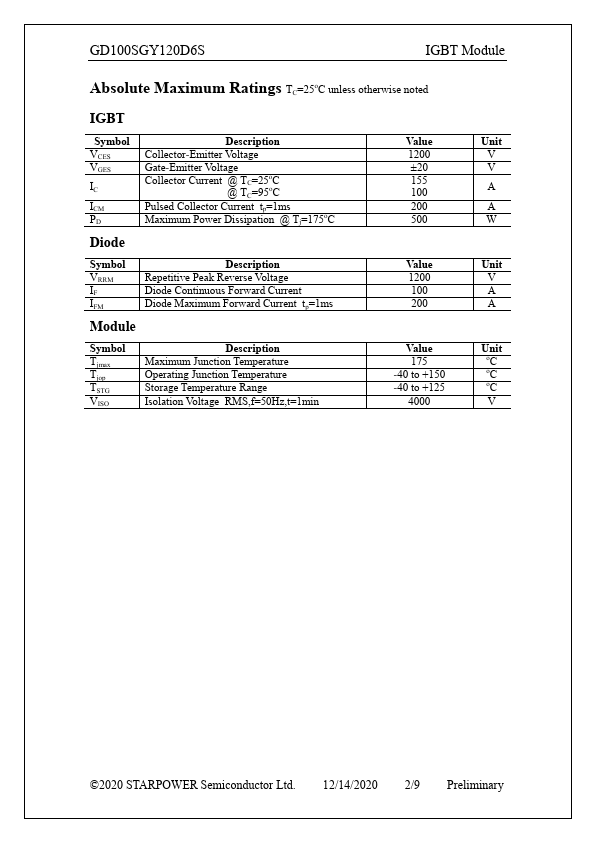

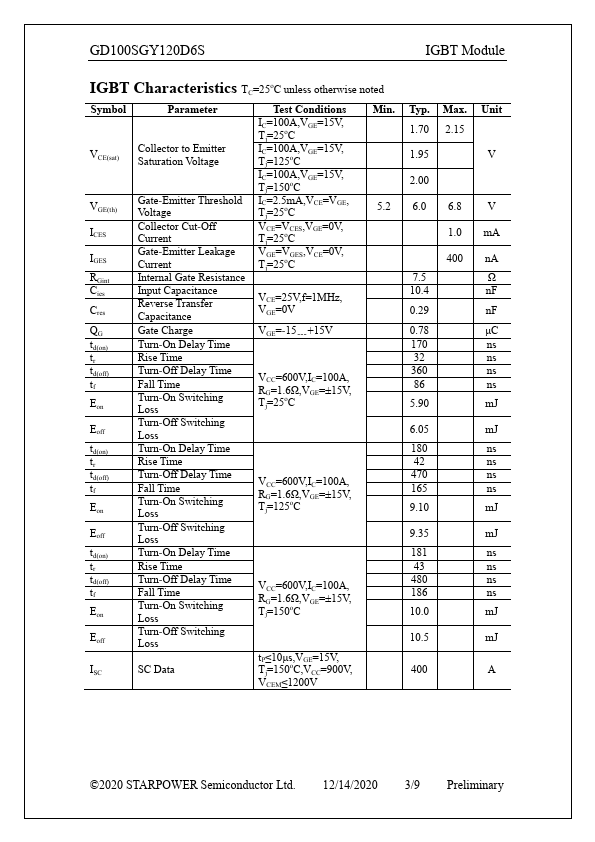

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GD100SGY120D6S
Manufacturer
STARPOWER
File Size
413.92 KB
Datasheet
GD100SGY120D6S-STARPOWER.pdf
Description
IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol
