GB14NC60K - IGBT

GB14NC60K Description

STGB14NC60K STGD14NC60K N-channel 14A - 600V -DPAK - D2PAK Short circuit rated PowerMESH™ IGBT General .
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the Power MESH.

GB14NC60K Features

* Type STGB14NC60K STGD14NC60K VCES VCE(sat) (Max)@ 25°C IC @100°C 600V 600V

GB14NC60K Applications

* with short circuit withstand capability. Applications
* High frequency inverters
* Motor drivers with short circuit protection 3 1 D²PAK 3 1 DPAK Internal schematic diagram Order codes Part number STGB14NC60KT4 STGD14NC60KT4 July 2006 Marking GB14NC60K GD14NC60K Package D²PAK DPAK Re

📥 Download Datasheet

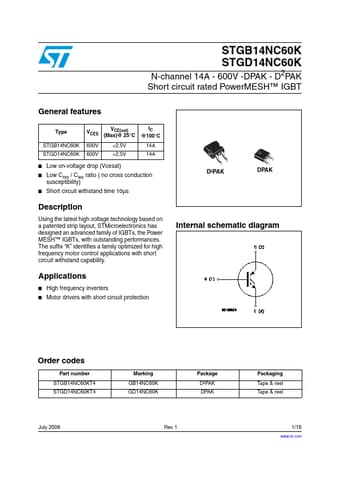

Preview of GB14NC60K PDF
