MC34063A

DC-DC CONVERTER CONTROL CIRCUITS

MC34063A Features

* B1 b b1 D E e e3 e4 F I L Z MC34063A/E Plastic DIP-8 MECHANICAL DATA MIN. 0.7 1.39 0.91 0.38 0.44 mm. TYP 3.3 0.5 8.8 2.54 7.62 7.62 3.3 MAX. 1.65 1.04 0.5 9.8 7.1 4.8 1.6 MIN. 0.028 0.055 0.036 0.015 0.017 inch TYP. 0.130 0.020 0.346 0.100 0.300 0.300 0.130 MAX. 0.065 0.041 0.020 0.386 0.2

MC34063A General Description

The MC34063A/E series is a monolithic control circuit delivering the main functions for DC/DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switc.

MC34063A Datasheet (454.26 KB)

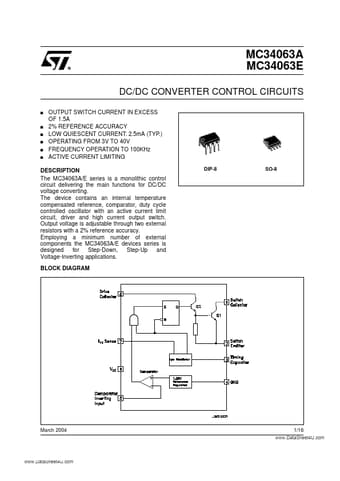

Preview of MC34063A PDF

Datasheet Details

Part number:

MC34063A

Manufacturer:

STMicroelectronics ↗

File Size:

454.26 KB

Description:

Dc-dc converter control circuits.
( DataSheet : www.DataSheet4U.com ) MC34063A MC34063E DC/DC CONVERTER CONTROL CIRCUITS s OUTPUT SWITCH CURRENT IN EXCESS OF 1.5A s 2% REFERENCE ACC.
