STF10NK60Z Datasheet, Mosfet, STMicroelectronics

STF10NK60Z Features

  • Mosfet Type STF10NK60Z(045Y) VDSS 600 V RDS(on) max ID Pw < 0.75 Ω 10 A 35 W
  • Extremely high dv/dt capability
  • 100% avalanche tested
  • Gate charge minimized

PDF File Details

Part number:

STF10NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

271.56kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

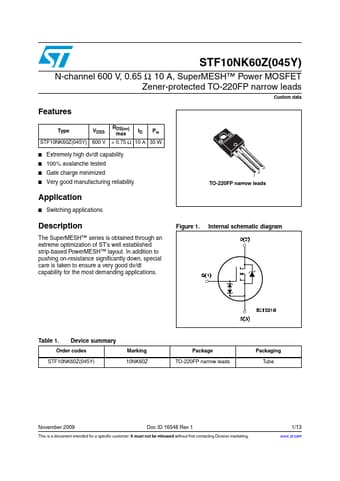

Datasheet Preview: STF10NK60Z 📥 Download PDF (271.56kb)
Page 2 of STF10NK60Z Page 3 of STF10NK60Z

STF10NK60Z Application

  • Applications 3 2 1 TO-220FP narrow leads Description The SuperMESH™ series is obtained through an extreme optimization of ST’s well established st
