STF10P6F6

P-CHANNEL POWER MOSFET

STMicroelectronics

STF10P6F6 Features

* Order codes STD10P6F6 STF10P6F6 STP10P6F6 STU10P6F6 VDS -60 V RDS(on) max 0.16 Ω

* Very low on-resistance

* Very low gate charge

* High avalanche ruggedness

* Low gate drive power loss ID -10 A Applications

* Switching applications Description These dev

STF10P6F6 General Description

These devices are P-channel Power MOSFETs developed using the STripFET™ F6 technology, with a new trench gate structure. The resulting Power MOSFETs exhibit very low RDS(on) in all packages. Order codes STD10P6F6 STF10P6F6 STP10P6F6 STU10P6F6 AM11258v1 Table 1. Device summary Marking Package D.

STF10P6F6 Datasheet (1.13 MB)

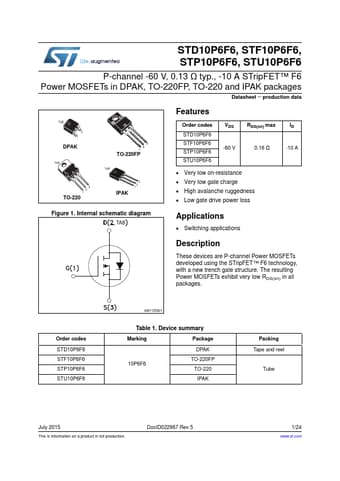

STF10P6F6 Datasheet Preview — Preview of STF10P6F6 PDF

Datasheet Details

Part number:

STF10P6F6

Manufacturer:

STMicroelectronics ↗

File Size:

1.13 MB

Description:

P-channel power mosfet.
STD10P6F6, STF10P6F6, STP10P6F6, STU10P6F6 P-channel -60 V, 0.13 Ω typ., -10 A STripFET™ F6 Power MOSFETs in DPAK, TO-220FP, TO-220 and IPAK packages .
