STF1N105K3 Datasheet - STMicroelectronics

N-channel Power MOSFET

STF1N105K3 Features

* Order codes VDS RDS(on) max ID PTOT STF1N105K3 STFW1N105K3 1050 V STP1N105K3 11 Ω 20 W 1.4 A 60 W

* Gate charge minimized

* Extremely large avalanche performance

* 100% avalanche tested

* Very low intrinsic capacitance TAB 3 2 1 TO-220FP 1 3 2 1 TO-3PF 3 2 1 TO-220 Applic

STF1N105K3 General Description

These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized vertical structure. These devices boast an extremely low onresistance, superior dynamic performance and high avalanche capability, rendering them suitabl.

STF1N105K3 Datasheet (319.66 KB)

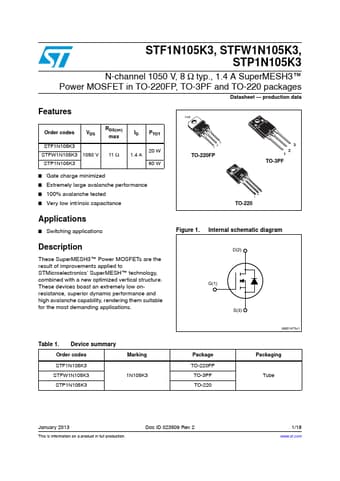

STF1N105K3 Datasheet Preview — Preview of STF1N105K3 PDF

Datasheet Details

Part number:

STF1N105K3

Manufacturer:

STMicroelectronics ↗

File Size:

319.66 KB

Description:

N-channel power mosfet.
STF1N105K3, STFW1N105K3, STP1N105K3 N-channel 1050 V, 8 Ω typ., 1.4 A SuperMESH3™ Power MOSFET in TO-220FP, TO-3PF and TO-220 packages Datasheet <.
