STG3820 Low voltage high bandwidth quad DPDT switch

STG3820 Description

STG3820 Low voltage high bandwidth quad DPDT switch .
The STG3820 is a high-speed CMOS low voltage quad analog DPDT (dual pole dual throw) switch or 2:1 multiplexer/de-multiplexer switch fabricated in sil.

STG3820 Features

* Ultra low power dissipation:
* ICC = 1 µA (max) at TA = 85 °C Low "ON" resistance:
* RON = 5.4 Ω (TA = 25 ºC) at VCC = 4.3 V
* RON = 6.6 Ω (TA = 25 ºC) at VCC = 3.0 V Wide operating voltage range:
* VCC (OPR) = 1.65 V to 4.3 V 4.3 V tolerant and 1.8 V com

STG3820 Applications

* The SELm-n input is provided to control the switches. The switches nS1 and mS1 are ON (connected to common ports Dn and Dm respectively) when the SELm-n input is held high and OFF (high impedance state exists between the two ports) when SELm-n is held low. The switches nS2 and mS2 are ON (connected

📥 Download Datasheet

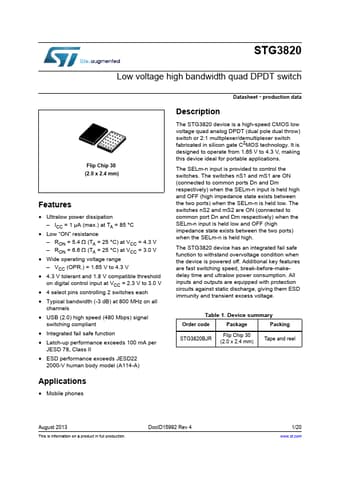

Preview of STG3820 PDF
datasheet Preview Page 2 datasheet Preview Page 3
