STG3856 Dual SP3T Switch

STG3856 Description

www.DataSheet4U.com STG3856 Low Voltage 1.0Ω Max Dual SP3T Switch With Break Before Make .
The STG3856 is a high-speed CMOS LOW VOLTAGE DUAL ANALOG S.

STG3856 Features

* HIGH SPEED:
* tPD = 0.3ns (TYP. ) at V CC = 3.0V
* tPD = 0.4ns (TYP. ) at V CC = 2.3V ULTRA LOW POWER DISSIPATION:
* ICC = 0.2µA (MAX. ) at TA = 85°C LOW “ON” RESISTANCE VIN = 0V:
* RON = 1.0Ω(MAX. TA = 25ºC) AT V CC=4.3V
* RON = 1.5Ω(MAX. TA = 25ºC) AT V

STG3856 Applications

* The device offers very low ON-Resistance (

📥 Download Datasheet

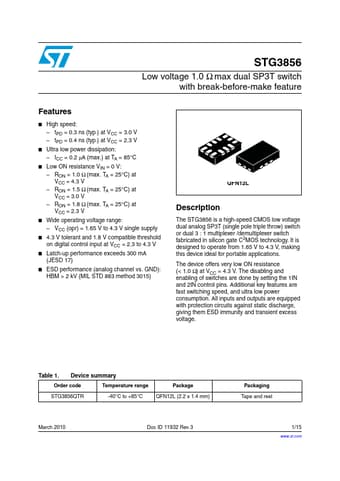

Preview of STG3856 PDF
