STGB15H60DF

Trench gate field-stop IGBT

STGB15H60DF Features

* High speed switching

* Tight parameters distribution

* Safe paralleling

* Low thermal resistance

* Short-circuit rated

* Ultrafast soft recovery antiparallel diode Applications

* Motor control

* UPS, PFC Description These devices are

STGB15H60DF General Description

These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure. These devices are part of the H series of IGBTs, which represents an optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequency converters. Furtherm.

STGB15H60DF Datasheet (780.02 KB)

Preview of STGB15H60DF PDF

Datasheet Details

Part number:

STGB15H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

780.02 KB

Description:

Trench gate field-stop igbt.

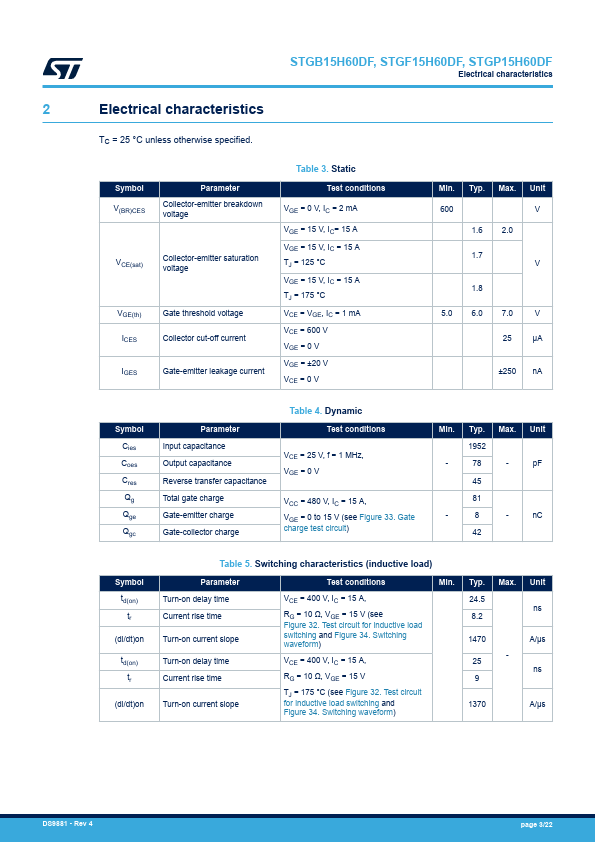

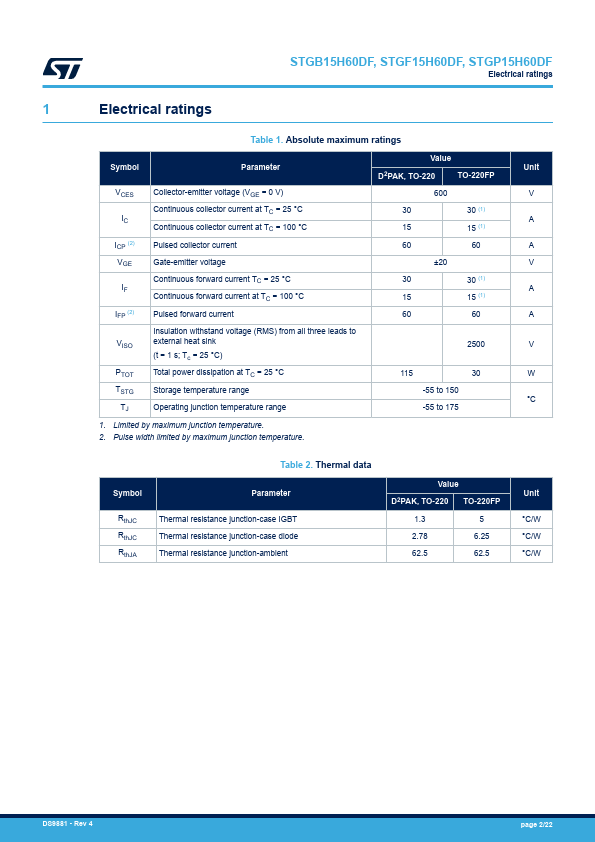

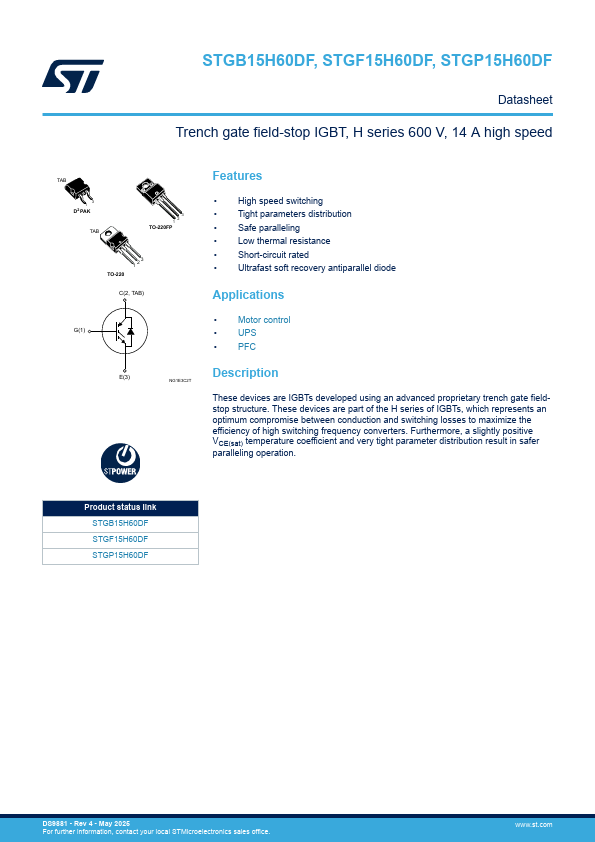

STGB15H60DF, STGF15H60DF, STGP15H60DF Datasheet Trench gate field-stop IGBT, H series 600 V, 14 A high speed TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-2.
