STGB15M65DF2 - Trench gate field-stop IGBT

STMicroelectronics

The STGB15M65DF2 by STMicroelectronics is a Trench gate field-stop IGBT. Below is the official datasheet preview.

📥 Download Datasheet

STGB15M65DF2 Trench gate field-stop IGBT by STMicroelectronics - Datasheet Preview — Official preview page of the STGB15M65DF2 Trench gate field-stop IGBT datasheet (STMicroelectronics).

Datasheet Details

Part number	STGB15M65DF2
Manufacturer	STMicroelectronics
File Size	915.56 KB
Description	Trench gate field-stop IGBT
Datasheet	STGB15M65DF2-STMicroelectronics.pdf

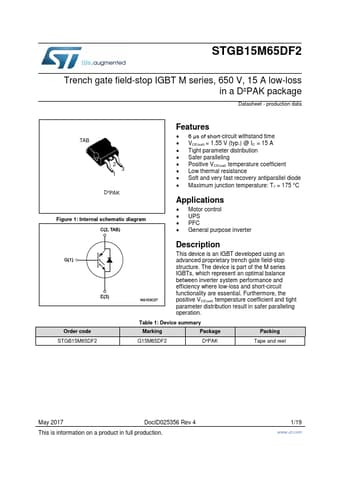

Additional preview pages of the STGB15M65DF2 datasheet.

STGB15M65DF2 Product details

Description

This device is an IGBT developed using an advanced proprietary trench gate field-stop structure.

Features

6 µs of short-circuit withstand time.
VCE(sat) = 1.55 V (typ. ) @ IC = 15 A.
Tight parameter distribution.
Safer paralleling.
Low thermal resistance.
Soft and very fast recovery antiparallel diode.
