STGB18N40LZT4 Datasheet, Igbt, STMicroelectronics

STGB18N40LZT4 Features

  • Igbt
  • AEC-Q101 qualified
  • SCIS energy of 180 mJ @ TC = 150 °C, L = 3 mH
  • Parts are 100% tested in SCIS
  • ESD gate-emitter protection
  • Gate-collect

PDF File Details

Part number:

STGB18N40LZT4

Manufacturer:

STMicroelectronics ↗

File Size:

571.26kb

Download:

📄 Datasheet

Description:

Automotive-grade 390v internally clamped igbt. This application-specific IGBT utilizes the most advanced PowerMESH technology optimized for coil driving in the harsh environment of

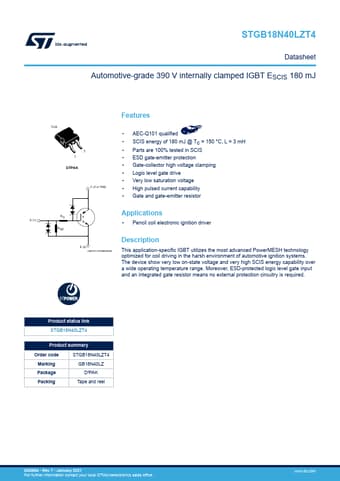

Datasheet Preview: STGB18N40LZT4 📥 Download PDF (571.26kb)
Page 2 of STGB18N40LZT4 Page 3 of STGB18N40LZT4

STGB18N40LZT4 Application

  • Applications
  • Pencil coil electronic ignition driver E (3) IGBTG1C2TABE3ESD Description This application-specific IGBT utilizes the most
