STGIPQ4C60T-HZ - 6A 600V IGBT

STMicroelectronics

STGIPQ4C60T-HZ Datasheet Preview — Preview of STGIPQ4C60T-HZ PDF

Datasheet Details

Part number	STGIPQ4C60T-HZ
Manufacturer	STMicroelectronics ↗
File Size	0.98 MB
Description	6A 600V IGBT
Datasheet	STGIPQ4C60T-HZ-STMicroelectronics.pdf

STGIPQ4C60T-HZ Product details

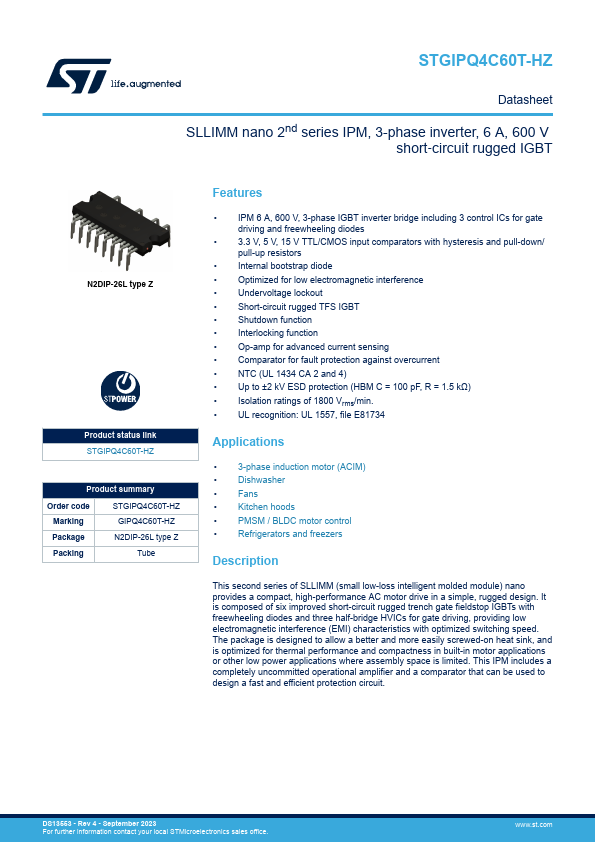

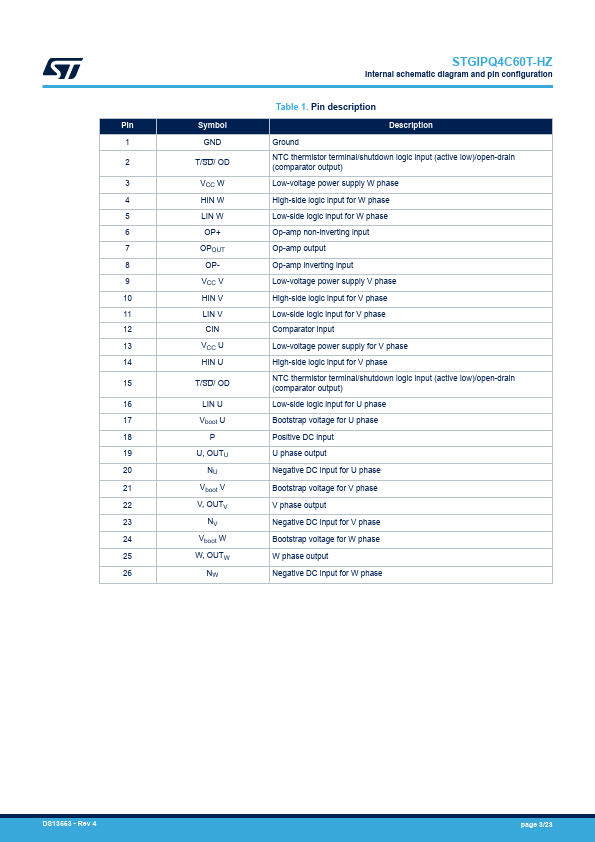

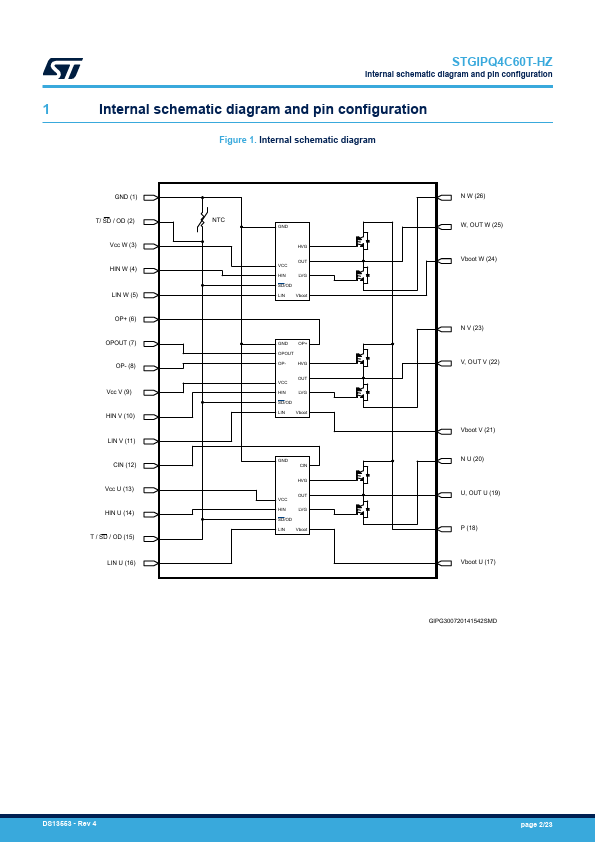

Description

This second series of SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged design.

Features

IPM 6 A, 600 V, 3-phase IGBT inverter bridge including 3 control ICs for gate driving and freewheeling diodes.
3.3 V, 5 V, 15 V TTL/CMOS input comparators with hysteresis and pull-down/ pull-up resistors.
Internal bootstrap diode.
Optimized for low electromagnetic interference.
Undervoltage lockout.
Short-circuit rugged TFS IGBT.
Shutdown function.
Interlocking function.
Op-amp for advanced current sensing.
