STGIPQ4C60T-HL

IGBT

STGIPQ4C60T-HL Features

* IPM 6 A, 600 V, 3-phase IGBT inverter bridge including 3 control ICs for gate driving and freewheeling diodes

* 3.3 V, 5 V, 15 V TTL/CMOS input comparators with hysteresis and pull-down/ pull-up resistors

* Internal bootstrap diode

* Optimized for low electromag

STGIPQ4C60T-HL General Description

This second series of SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six improved short-circuit rugged trench gate fieldstop IGBTs with freewheeling diodes and three half-bridge HVICs for gate .

STGIPQ4C60T-HL Datasheet (1.29 MB)

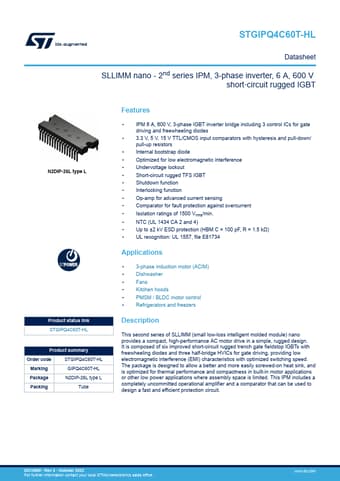

Preview of STGIPQ4C60T-HL PDF

Datasheet Details

Part number:

STGIPQ4C60T-HL

Manufacturer:

STMicroelectronics ↗

File Size:

1.29 MB

Description:

Igbt.
STGIPQ4C60T-HL Datasheet SLLIMM nano - 2nd series IPM, 3-phase inverter, 6 A, 600 V short‑circuit rugged IGBT N2DIP-26L type L Product status link S.
