STL90N6F7 - N-CHANNEL POWER MOSFET

STMicroelectronics

STL90N6F7 Datasheet Preview — Preview of STL90N6F7 PDF

Datasheet Details

Part number	STL90N6F7
Manufacturer	STMicroelectronics ↗
File Size	500.87 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STL90N6F7-STMicroelectronics.pdf

STL90N6F7 Product details

Description

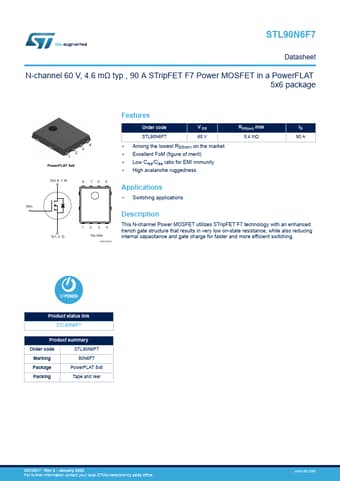

S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.Product status link STL90N6F7 Product summary Order code STL90N6F7 Marking 90N6F7 Package PowerFLAT 5x6 Packing Tape and reel DS10917 - Rev 3 - January 2020 For further information contact your local STMicro

Features

PowerFLAT 5x6 Order code V DS STL90N6F7 60 V.
Among the lowest RDS(on) on the market.
Excellent FoM (figure of merit).
Low Crss/Ciss ratio for EMI immunity.
High avalanche ruggedness RDS(on) max 5.4 mΩ ID 90 A D(5, 6, 7, 8) 8 76 5.
