STL9P2UH7 - P-CHANNEL POWER MOSFET

STMicroelectronics

Datasheet Details

Part number	STL9P2UH7
Manufacturer	STMicroelectronics ↗
File Size	412.60 KB
Description	P-CHANNEL POWER MOSFET
Datasheet	STL9P2UH7-STMicroelectronics.pdf

This device exhibits low on-state resistance and capacitance for improved conduction and switching performance.

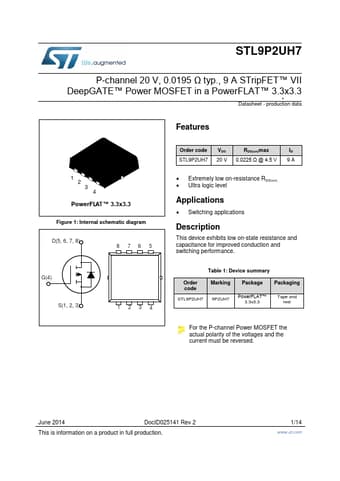

1 2 3 4 PowerFLAT™ 3.3x3.3 Figure 1: Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) S(1, 2, 3) 1234 Order code STL9P2UH7 VDS 20 V RDS(on)max 0.0225 Ω @ 4.5 V ID 9A.
Extremely low on-resistance RDS(on).
Ultra logic level.
