STL9P4LF6AG Datasheet - STMicroelectronics

STL9P4LF6AG-STMicroelectronics.pdf

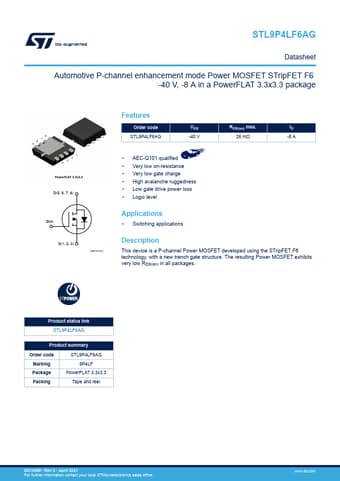

Preview of STL9P4LF6AG PDF
STL9P4LF6AG Datasheet Preview Page 2 STL9P4LF6AG Datasheet Preview Page 3

Datasheet Details

Part number:

STL9P4LF6AG

Manufacturer:

STMicroelectronics ↗

File Size:

414.85 KB

Description:

Automotive p-channel mosfet.

STL9P4LF6AG, Automotive P-channel MOSFET

This device is a P-channel Power MOSFET developed using the STripFET F6 technology, with a new trench gate structure.

The resulting Power MOSFET exhibits very low RDS(on) in all packages.

Product status link STL9P4LF6AG Product summary Order code STL9P4LF6AG Marking 9P4LF Package PowerFLAT 3

STL9P4LF6AG Features

* Order code VDS RDS(on) max. ID STL9P4LF6AG -40 V 26 mΩ -8 A

* AEC-Q101 qualified

* Very low on-resistance

* Very low gate charge

* High avalanche ruggedness

* Low gate drive power loss

* Logic level Applications

* Switching application
