STL9P3LLH6 Datasheet - STMicroelectronics

P-CHANNEL POWER MOSFET

STL9P3LLH6 General Description

This device is a P-channel Power MOSFET developed using the STripFET™ H6 technology with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on) in all packages. AM01475v4 Product status STL9P3LLH6 Product summary Order code STL9P3LLH6 Marking 9P3L Package PowerFLA.

STL9P3LLH6 Datasheet (575.91 KB)

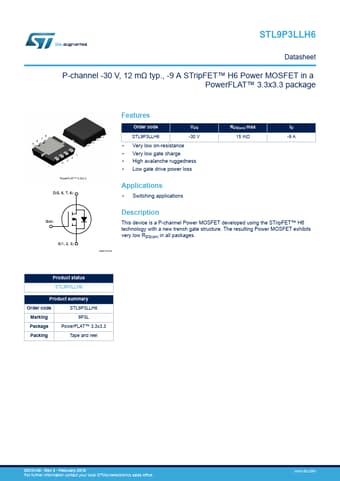

STL9P3LLH6 Datasheet Preview — Preview of STL9P3LLH6 PDF

Datasheet Details

Part number:

STL9P3LLH6

Manufacturer:

STMicroelectronics ↗

File Size:

575.91 KB

Description:

P-channel power mosfet.
STL9P3LLH6 Datasheet P-channel -30 V, 12 mΩ typ., -9 A STripFET™ H6 Power MOSFET in a PowerFLAT™ 3.3x3.3 package D(5, 6, 7, 8) G(4) S(1, 2, 3) Featu.
