STL90N3LLH6 - Power MOSFETs

ST Microelectronics

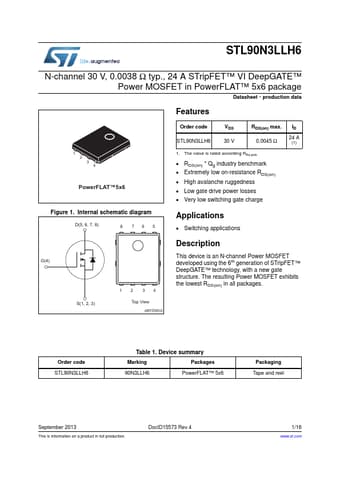

STL90N3LLH6 Datasheet Preview — Preview of STL90N3LLH6 PDF

Datasheet Details

Part number	STL90N3LLH6
Manufacturer	STMicroelectronics ↗
File Size	693.29 KB
Description	Power MOSFETs
Datasheet	STL90N3LLH6_STMicroelectronics.pdf

STL90N3LLH6 Product details

Description

This product utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in a standard package, that makes it suitable for the most demanding DC-DC converter applications, where high power density has to be achieved.

Features

Type STL90N3LLH6 VDSS 30 V RDS(on) max 0.004 Ω ID 24 A (1) 1. The value is rated according Rthj-pcb.
RDS(on).
Qg industry benchmark Extremely low on-resistance RDS(on) High avalanche ruggedness Low gate drive power losses Very low switching gate charge PowerFLAT™ ( 6x5 ).
