STP12N60M2 Datasheet, Mosfet, STMicroelectronics

STP12N60M2 Features

  • Mosfet Order code VDS RDS(on) max. ID PTOT STP12N60M2 600 V 0.450 Ω 9 A 85 W
  • Extremely low gate charge
  • Excellent output capacitance (COSS) profile
  • 100% aval

PDF File Details

Part number:

STP12N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

287.66kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical s

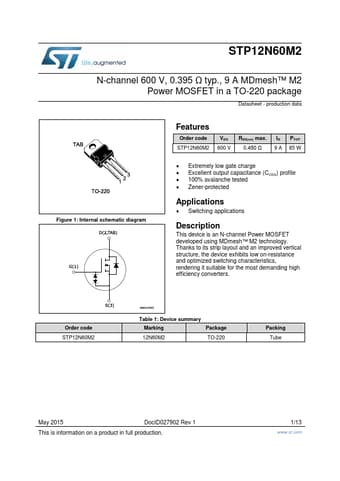

Datasheet Preview: STP12N60M2 📥 Download PDF (287.66kb)
Page 2 of STP12N60M2 Page 3 of STP12N60M2

STP12N60M2 Application

  • Applications
  • Switching applications Description This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to
