STP12N65M5 - N-Channel Power MOSFET

Datasheet Summary

Description

This device is an N-channel Power MOSFET based on the MDmesh M5 innovative vertical process technology combined with the well-known PowerMESH horizontal layout.

Features

  • Order code VDS @ TJ max. RDS(on) max. STF12N65M5 STP12N65M5 710 V 430 mΩ.
  • Extremely low RDS(on).
  • Low gate charge and input capacitance.
  • Excellent switching performance.
  • 100% avalanche tested ID 8.5 A G(1) S(3).

📥 Download Datasheet

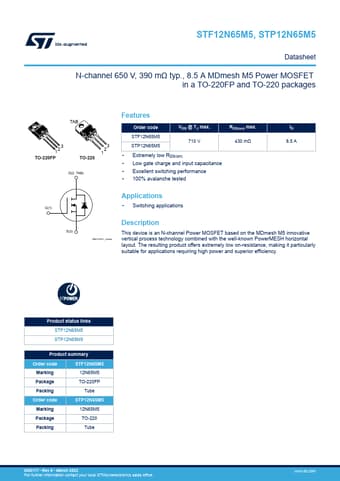

Datasheet preview – STP12N65M5

Datasheet Details

Part number STP12N65M5
Manufacturer STMicroelectronics
File Size 330.86 KB
Description N-Channel Power MOSFET
Datasheet download datasheet STP12N65M5 Datasheet
Additional preview pages of the STP12N65M5 datasheet.
