STP120NH03L - N-CHANNEL POWER MOSFET

Datasheet Summary

Description

These devices utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology.

It is ideal in high performance DC-DC converter applications where efficiency is to be achieved at very high output currents.

Switching application Orde

Features

  • Type STB120NH03L STP120NH03L STI120NH03L VDSS 30V 30V 30V RDS(on).

📥 Download Datasheet

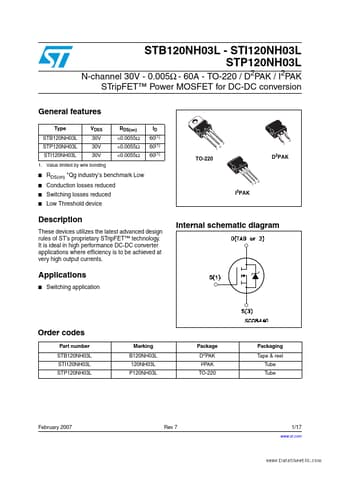

Datasheet preview – STP120NH03L

Datasheet Details

Part number STP120NH03L
Manufacturer STMicroelectronics
File Size 546.11 KB
Description N-CHANNEL POWER MOSFET
Datasheet download datasheet STP120NH03L Datasheet
Additional preview pages of the STP120NH03L datasheet.
