STP12N65M2 - N-Channel Power MOSFET

Datasheet Summary

Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology.

Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters.

Features

  • Order code STP12N65M2 VDS 650 V RDS(on) max. ID 0.50 Ω 8A.
  • Extremely low gate charge.
  • Excellent output capacitance (COSS) profile.
  • 100% avalanche tested.
  • Zener-protected.

📥 Download Datasheet

Datasheet preview – STP12N65M2

Datasheet Details

Part number STP12N65M2
Manufacturer STMicroelectronics
File Size 671.69 KB
Description N-Channel Power MOSFET
Datasheet download datasheet STP12N65M2 Datasheet
Additional preview pages of the STP12N65M2 datasheet.

📁 Similar Datasheet

  • STP12N65M5 - N-Channel Power MOSFET (ST Microelectronics)
  • STP12N65M5 - N-Channel MOSFET (INCHANGE)
  • STP12NB30 - N - CHANNEL ENHANCEMENT MODE PowerMESH MOSFET (ST Microelectronics)
  • STP12NK30Z - N-CHANNEL 300V - 0.36ohm - 9A - TO-220 Zener-Protected SuperMESH Power MOSFET (ST Microelectronics)
  • STP12NM50 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP12NM50 - N-Channel MOSFET (INCHANGE)
  • STP12NM50FP - N-Channel MOSFET (INCHANGE)
  • STP120NF04 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STP120NF10 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STP120NH03L - N-CHANNEL POWER MOSFET (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

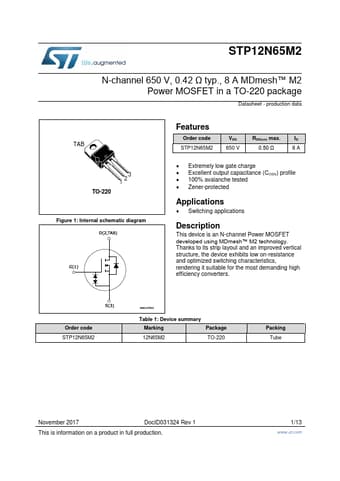

STP12N65M2 N-channel 650 V, 0.42 Ω typ., 8 A MDmesh™ M2 Power MOSFET in a TO-220 package Datasheet - production data TAB TO-220 1 23 Figure 1: Internal schematic diagram Features Order code STP12N65M2 VDS 650 V RDS(on) max. ID 0.50 Ω 8A  Extremely low gate charge  Excellent output capacitance (COSS) profile  100% avalanche tested  Zener-protected Applications  Switching applications Description This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters.
