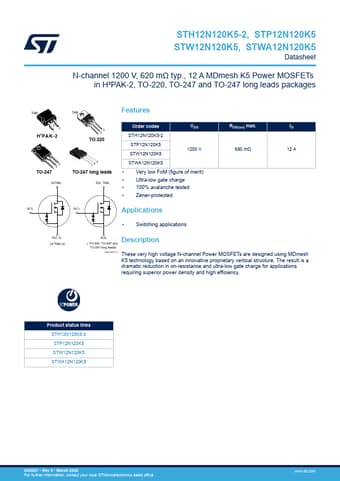

* Order codes VDS RDS(on) max. ID PTOT STH12N120K5-2 STP12N120K5 1200 V STW12N120K5 0.69 Ω 12 A 250 W STWA12N120K5 TO-247 3 2 1 3 2 1 TO-247 long leads Figure 1: Internal schematic diagram D(TAB) D(2, TAB) G(1) G(1) S(2, 3) (H 2PAK-2) S(3) ( TO-220, TO-247 and TO-247 long leads)

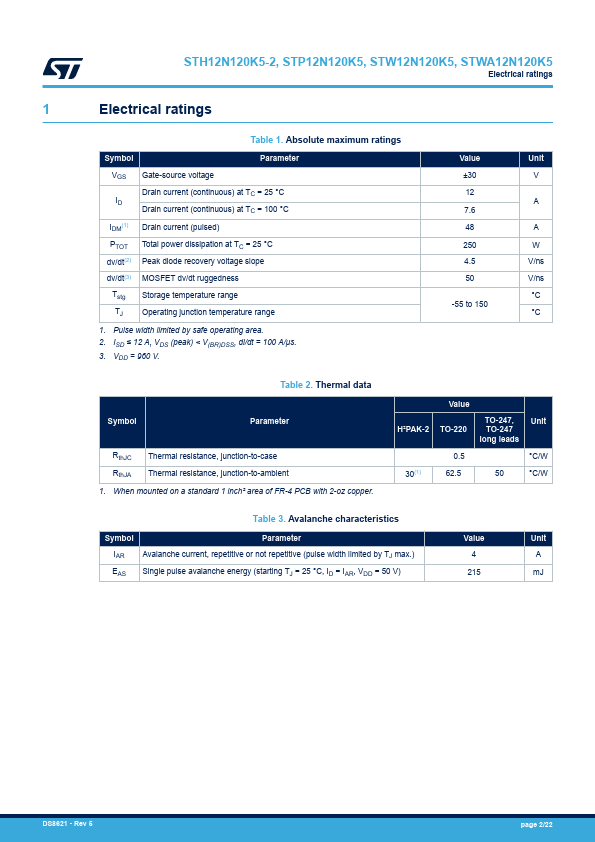

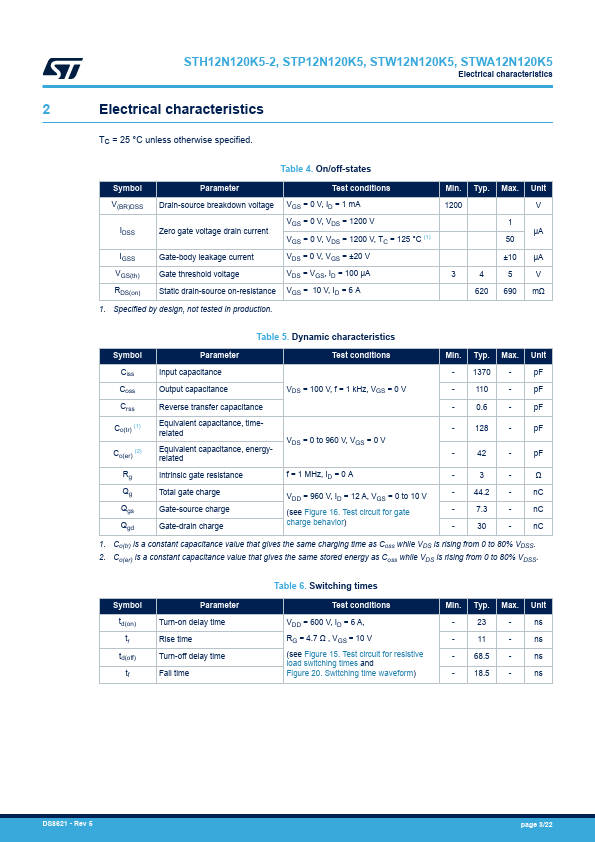

STP12N120K5 Datasheet (590.58 KB)
STP12N120K5
590.58 KB
N-channel power mos mosfet.
STH12N120K5-2, STP12N120K5, STW12N120K5, STWA12N120K5 N-channel 1200 V, 0.62 Ω typ.,12 A MDmesh K5 Power MOSFETs in H²PAK-2, TO-220, TO-247 and TO-247.
