STP12IE90F4 - Emitter Switched Bipolar Transistor

ST Microelectronics

📥 Download Datasheet

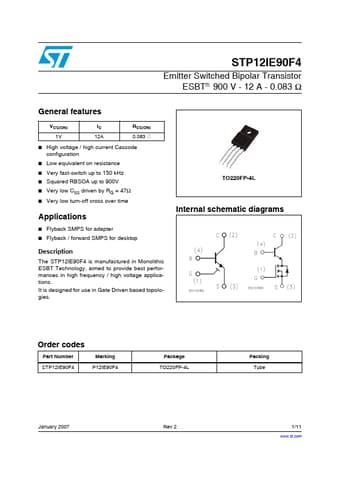

STP12IE90F4 Datasheet Preview — Preview of STP12IE90F4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: STP12IE90F4
Manufacturer: STMicroelectronics ↗
File Size: 297.38 KB
Datasheet: STP12IE90F4_STMicroelectronics.pdf
Description: Emitter Switched Bipolar Transistor

STP12IE90F4 Product details

Description

The STP12IE90F4 is manufactured in Monolithic ESBT Technology, aimed to provide best performances in high frequency / high voltage applications.

Features

VCS(ON) 1V.
IC 12A RCS(ON) 0.083 W High voltage / high current Cascode configuration Low equivalent on resistance Very fast-switch up to 150 kHz Squared RBSOA up to 900V Very low Ciss driven by RG = 47Ω Very low turn-off cross over time TO220FP-4L.
