STP120N4F6 Datasheet, Mosfet, STMicroelectronics

STP120N4F6 Features

  • Mosfet Order code STP120N4F6 VDSS 40 V RDS(on) max. 4.3 mΩ 1. Current limited by package
  • Standard threshold drive
  • 100% avalanche tested ID 80 A (1) Application

PDF File Details

Part number:

STP120N4F6

Manufacturer:

STMicroelectronics ↗

File Size:

720.31kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is a 40 V N-channel STripFET™ VI Power MOSFET based on the ST’s proprietary STripFET™ technology, with a new gate structu

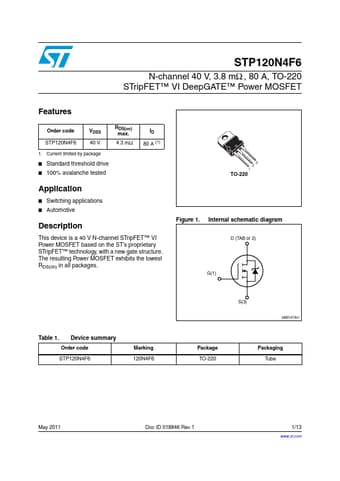

Datasheet Preview: STP120N4F6 📥 Download PDF (720.31kb)
Page 2 of STP120N4F6 Page 3 of STP120N4F6

STP120N4F6 Application

  • Applications
  • Automotive Description This device is a 40 V N-channel STripFET™ VI Power MOSFET based on the ST’s proprietary STripFET™ tec
