STP12IE95F4 Datasheet, Transistor, ST Microelectronics

STP12IE95F4 Features

• Transistor VCS(ON) 1V
• IC 12A RCS(ON) 0.083 W High voltage / high current Cascode configuration Low equivalent on resistance Very fast-switch up to 150 kHz Squared RBSOA up to 950V Ve

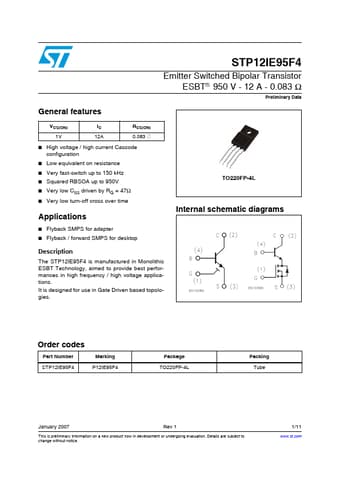

PDF File Details

Part number:

STP12IE95F4

Manufacturer:

STMicroelectronics ↗

File Size:

297.92kb

Download:

📄 Datasheet

Description:

Emitter switched bipolar transistor. The STP12IE95F4 is manufactured in Monolithic ESBT Technology, aimed to provide best performances in high frequency / high voltage ap

STP12IE95F4 Application

• Applications
• Internal schematic diagrams Flyback SMPS for adapter Flyback / forward SMPS for desktop Description The STP12IE9
