STP12NM50N - N-channel Power MOSFET

Datasheet Summary

Description

This series of devices is realized with the second generation of MDmesh™ technology.

This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge.

Features

  • Type STB12NM50N STD12NM50N STF12NM50N STP12NM50N.
  • VDSS (@Tjmax) 550V 550V 550V 550V RDS(on).

📥 Download Datasheet

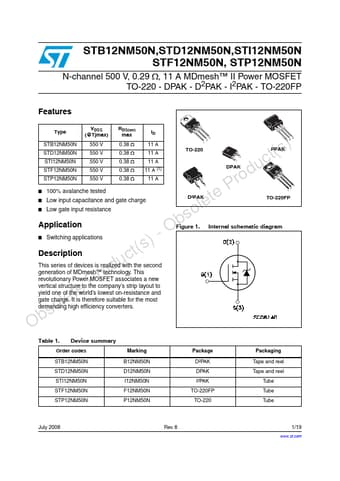

Datasheet preview – STP12NM50N

Datasheet Details

Part number STP12NM50N
Manufacturer STMicroelectronics
File Size 559.46 KB
Description N-channel Power MOSFET
Datasheet download datasheet STP12NM50N Datasheet
Additional preview pages of the STP12NM50N datasheet.

📁 Similar Datasheet

  • STP12NM50 - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP12NM50 - N-Channel MOSFET (INCHANGE)
  • STP12NM50FP - N-Channel MOSFET (INCHANGE)
  • STP12N65M5 - N-Channel Power MOSFET (ST Microelectronics)
  • STP12N65M5 - N-Channel MOSFET (INCHANGE)
  • STP12NB30 - N - CHANNEL ENHANCEMENT MODE PowerMESH MOSFET (ST Microelectronics)
  • STP12NK30Z - N-CHANNEL 300V - 0.36ohm - 9A - TO-220 Zener-Protected SuperMESH Power MOSFET (ST Microelectronics)
  • STP120NF04 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STP120NF10 - N-CHANNEL POWER MOSFET (ST Microelectronics)
  • STP120NH03L - N-CHANNEL POWER MOSFET (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com STB12NM50N - STD12NM50N STF12NM50N - STP12NM50N N-channel 500V - 0.29Ω - 11A - TO-220 /FP- D2PAK - DPAK Second generation MDmesh™ Power MOSFET General features Type STB12NM50N STD12NM50N STF12NM50N STP12NM50N ■ ■ ■ VDSS (@Tjmax) 550V 550V 550V 550V RDS(on) <0.38Ω <0.38Ω <0.38Ω <0.38Ω ID 11A 11A 11A (1) 11A 3 1 1 3 2 3 1 DPAK TO-220 100% avalanche tested Low input capacitance and gate charge Low gate input resistancel D²PAK 3 1 2 TO-220FP Description This series of devices is realized with the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge.
