STP5NK80Z Datasheet, Mosfet, STMicroelectronics

STP5NK80Z Features

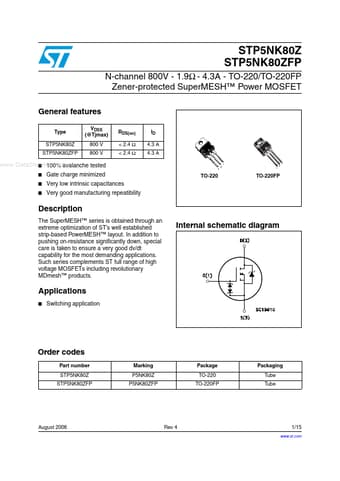

• Mosfet Type STP5NK80Z STP5NK80ZFP VDSS (@Tjmax) 800 V 800 V RDS(on) < 2.4 Ω < 2.4 Ω ID 4.3 A 4.3 A 3 1 2 www.DataSheet4U.com
• 100% avalanche tested
• Gat

PDF File Details

Part number:

STP5NK80Z

Manufacturer:

STMicroelectronics ↗

File Size:

384.77kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

STP5NK80Z Application

• Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Internal schematic diagram A
