STP5NK60ZFP, STP5NK60Z Datasheet - ST Microelectronics

STP5NK60Z_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STP5NK60ZFP, STP5NK60Z. Please refer to the document for exact specifications by model.

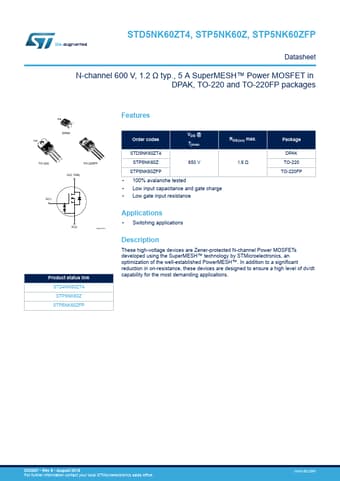

STP5NK60ZFP Datasheet Preview Page 2 STP5NK60ZFP Datasheet Preview Page 3

Datasheet Details

Part number:

STP5NK60ZFP, STP5NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

559.45 KB

Description:

N-channel power mosfet.

Note:

This datasheet PDF includes multiple part numbers: STP5NK60ZFP, STP5NK60Z.
Please refer to the document for exact specifications by model.

STP5NK60ZFP, STP5NK60Z, N-CHANNEL Power MOSFET

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.

Such series complements

STP5NK60ZFP Features

* TYPE STP5NK60Z STP5NK60ZFP STD5NK60Z

* Figure 1: Package Id 5A 5A 5A PTOT 90 W 25 W 90 W 3 1 2 1 3 2 VDSS@ TJmax 650 V 650 V 650 V RDS(on) < 1.6 Ω < 1.6 Ω < 1.6 Ω TYPICAL RDS(on) = 1.2 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARGE MINIMIZED
