STP5NK40ZFP Datasheet, Mosfet, ST Microelectronics

STP5NK40ZFP Features

• Mosfet OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absor

PDF File Details

Part number:

STP5NK40ZFP

Manufacturer:

STMicroelectronics ↗

File Size:

488.16kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition

STP5NK40ZFP Application

• Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM A

TAGS

STP5NK40ZFP

ST Microelectronics

📁 Related Datasheet

STP5NK40Z - N-CHANNEL Power MOSFET (ST Microelectronics)

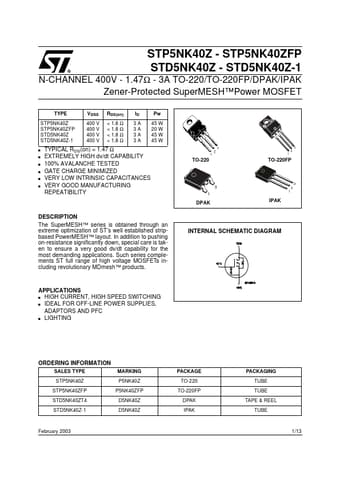

.. STP5NK40Z - STP5NK40ZFP STD5NK40Z - STD5NK40Z-1 N-CHANNEL 400V - 1.47Ω - 3A TO-220/TO-220FP/DPAK/IPAK Zener-Protected SuperMESH™P.
