STP5NK90Z N-channel Power MOSFET

STMicroelectronics

Description

STP5NK90Z STF5NK90Z N-CHANNEL 900V - 2Ω - 4.5A TO-220/TO-220FP Zener-Protected SuperMESH™MOSFET Table 1: General .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

📥 Download Datasheet

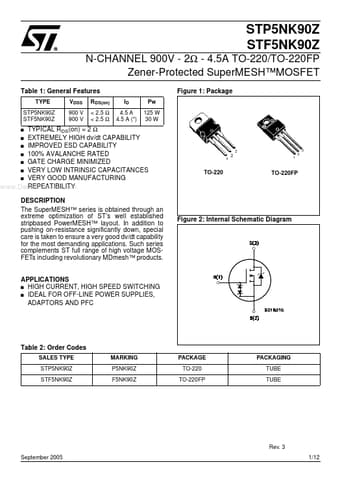

STP5NK90Z Datasheet Preview — Preview of STP5NK90Z PDF

Datasheet Specifications

Part number: STP5NK90Z
Manufacturer: STMicroelectronics ↗
File Size: 360.43 KB
Datasheet: STP5NK90Z_STMicroelectronics.pdf
Description: N-channel Power MOSFET

Features

* TYPE STP5NK90Z STF5NK90Z s Figure 1: Package ID 4.5 A 4.5 A (
* ) Pw 125 W 30 W VDSS 900 V 900 V RDS(on) < 2.5 Ω < 2.5 Ω TYPICAL RDS(on) = 2 Ω s EXTREMELY HIGH dv/dt CAPABILITY s IMPROVED ESD CAPABILITY s 100% AVALANCHE RATED s GATE CHARGE MINIMIZED s VERY LOW INTRINSIC CAPACITANCES s VERY GOO

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. 3 1 2 TO-220 TO-220FP Figure 2: Internal Schematic Diagram APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC Table 2: Order Codes SALES
