STP5NK40Z, N-CHANNEL Power MOSFET
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.
In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.
Such series complements

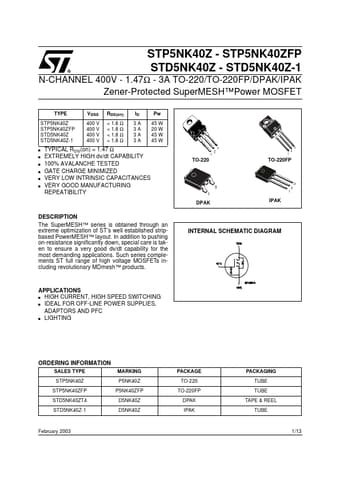

www.DataSheet4U.com STP5NK40Z - STP5NK40ZFP STD5NK40Z - STD5NK40Z-1 N-CHANNEL 400V - 1.47Ω - 3A TO-220/TO-220FP/DPAK/IPAK Zener-Protected SuperMESH™Power MOSFET TYPE STP5NK40Z STP5NK40ZFP STD5NK40Z STD5NK40Z-1 s s s s s s VDSS 400 400 400 400 V V V V RDS(on) < 1.8 < 1.8 < 1.8 < 1.8 Ω Ω Ω Ω ID 3 3 3 3 A A A A Pw 45 W 20 W 45 W 45 W 3 1 2 TYPICAL RDS(on) = 1.47 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARGE MINIMIZED VERY LOW INTRINSIC CAPACITANCES VERY GOOD MANUFACTURIN
STP5NK40Z Features
* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta
