STP5NK60Z

N-CHANNEL Power MOSFET

STP5NK60Z Features

* TYPE STP5NK60Z STP5NK60ZFP STD5NK60Z

* Figure 1: Package Id 5A 5A 5A PTOT 90 W 25 W 90 W 3 1 2 1 3 2 VDSS@ TJmax 650 V 650 V 650 V RDS(on) < 1.6 Ω < 1.6 Ω < 1.6 Ω TYPICAL RDS(on) = 1.2 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARGE MINIMIZED

STP5NK60Z General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements.

STP5NK60Z Datasheet (559.45 KB)

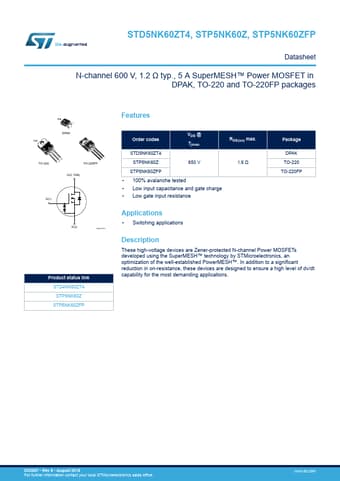

Preview of STP5NK60Z PDF

Datasheet Details

Part number:

STP5NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

559.45 KB

Description:

N-channel power mosfet.
www.DataSheet4U.com STD5NK60Z STP5NK60Z - STP5NK60ZFP N-CHANNEL 650V @Tjmax - 1.2Ω - 5A TO-220/FP/DPAK Zener-Protected SuperMESH™ MOSFET Table 1: Gen.
