STPIC6C595 - Power logic 8-bit shift register

STMicroelectronics

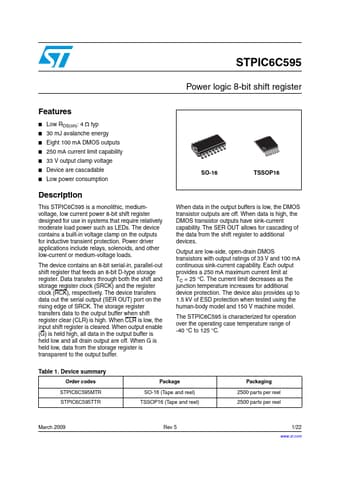

STPIC6C595 Datasheet Preview — Preview of STPIC6C595 PDF

Datasheet Details

Part number	STPIC6C595
Manufacturer	STMicroelectronics ↗
File Size	443.62 KB
Description	Power logic 8-bit shift register
Datasheet	STPIC6C595_STMicroelectronics.pdf

STPIC6C595 Product details

Description

This STPIC6C595 is a monolithic, mediumvoltage, low current power 8-bit shift register designed for use in systems that require relatively moderate load power such as LEDs.

Features

Low RDS(on): 4 Ω typ.
30 mJ avalanche energy.
Eight 100 mA DMOS outputs.
250 mA current limit capability.
33 V output clamp voltage.
Device are cascadable.
Low power consumption.
