STPIC6D595 - Power logic 8-bit shift register

STMicroelectronics

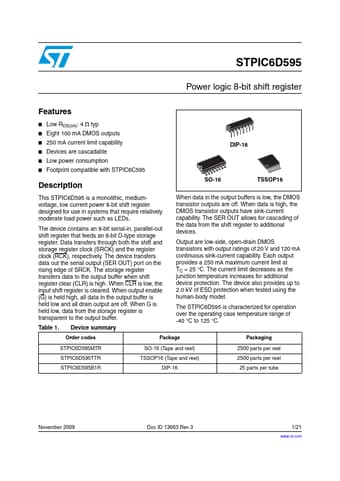

STPIC6D595 Datasheet Preview — Preview of STPIC6D595 PDF

Datasheet Details

Part number	STPIC6D595
Manufacturer	STMicroelectronics ↗
File Size	465.20 KB
Description	Power logic 8-bit shift register
Datasheet	STPIC6D595-STMicroelectronics.pdf

STPIC6D595 Product details

Description

DIP-16 SO-16 TSSOP16 This STPIC6D595 is a monolithic, mediumvoltage, low current power 8-bit shift register designed for use in systems that require relatively moderate load power such as LEDs.The device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.Data transfers through both the shift and storage register clock (SRCK) and the register clock (RCK), respectively.The device transfers data out the serial output (SER OUT) port on the ris

Features

Low RDS(on): 4 Ω typ.
Eight 100 mA DMOS outputs.
250 mA current limit capability.
Devices are cascadable.
Low power consumption.
Footprint compatible with STPIC6C595.
