STPS20L60C - Power Schottky rectifier

STMicroelectronics

📥 Download Datasheet

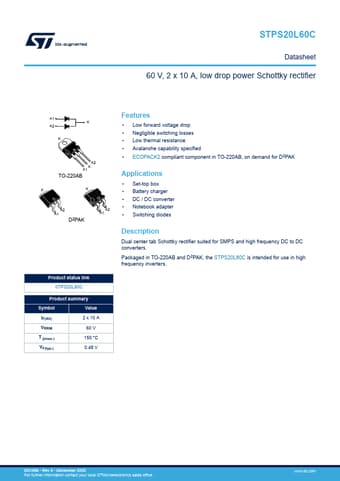

STPS20L60C Datasheet Preview — Preview of STPS20L60C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STPS20L60C
Manufacturer	STMicroelectronics
File Size	280.06 KB
Description	Power Schottky rectifier
Datasheet	STPS20L60C-STMicroelectronics.pdf

STPS20L60C Product details

Description

Dual center tab Schottky rectifier suited for SMPS and high frequency DC to DC converters.

Features

Low forward voltage drop.
Negligible switching losses.
Low thermal resistance.
Avalanche capability specified.
ECOPACK2 compliant component in TO-220AB, on demand for D2PAK.
