STPS20L60CG, STPS20L60C Power Schottky rectifier

STPS20L60CG Description

STPS20L60C Datasheet 60 V, 2 x 10 A, low drop power Schottky rectifier A1 K A2 K A2 A1 K TO-220AB K K A2 A1 D2PAK A2 A1 Product status link STP.
Dual center tab Schottky rectifier suited for SMPS and high frequency DC to DC converters.

STPS20L60CG Features

* Low forward voltage drop
* Negligible switching losses
* Low thermal resistance
* Avalanche capability specified

STPS20L60CG Applications

* Set-top box
* Battery charger
* DC / DC converter
* Notebook adapter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS20L60CG, STPS20L60C. Please refer to the document for exact specifications by model.

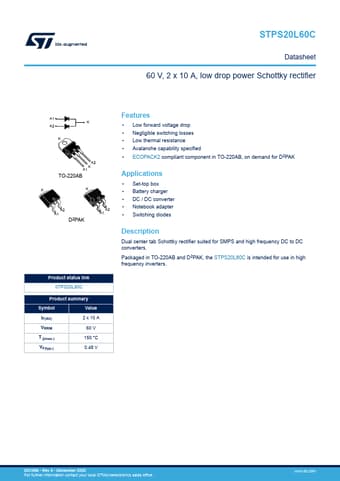

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS20L60CG, STPS20L60C
Manufacturer
STMicroelectronics ↗
File Size
280.06 KB
Datasheet
STPS20L60C-STMicroelectronics.pdf
Description
Power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS20L60CG, STPS20L60C.
Please refer to the document for exact specifications by model.
