STPS80170CW, STPS80170CSTMicroelectronics Power Schottky Rectifier

STPS80170CW Description

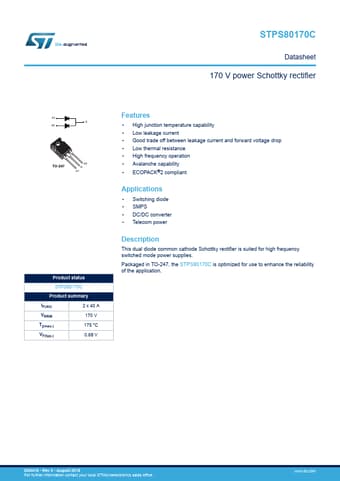

STPS80170C Datasheet 170 V power Schottky rectifier A1 K A2 TO-247 A2 K A1 Product status STPS80170C Product summary IF(AV) 2 x 40 A VRRM 17.
This dual diode common cathode Schottky rectifier is suited for high frequency switched mode power supplies.

STPS80170CW Features

* High junction temperature capability
* Low leakage current
* Good trade off between leakage current and forward voltage drop
* Low thermal resistance
* High frequency operation
* Avalanche capability

STPS80170CW Applications

* Switching diode
* SMPS
* DC/DC converter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS80170CW, STPS80170CSTMicroelectronics. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS80170CW, STPS80170CSTMicroelectronics
Manufacturer
STMicroelectronics ↗
File Size
205.71 KB
Datasheet
STPS80170CSTMicroelectronics.pdf
Description
Power Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: STPS80170CW, STPS80170CSTMicroelectronics.
Please refer to the document for exact specifications by model.
