STPSC15H12

1200V power Schottky silicon carbide diode

STPSC15H12 Features

* No or negligible reverse recovery

* Switching behavior independent of temperature

* Robust high voltage periphery

* Operating from -40 °C to 175 °C

* Low VF

* ECOPACK2 compliant component Applications

* EV charging stations

* Solar bo

STPSC15H12 General Description

The SiC diode, available in TO-220AC and TO-247 LL, is an ultrahigh performance power Schottky rectifier. It is manufactured using a silicon carbide substrate. The wide band-gap material allows the design of a low VF Schottky diode structure with a 1200 V rating. Due to the Schottky construction, no.

STPSC15H12 Datasheet (293.09 KB)

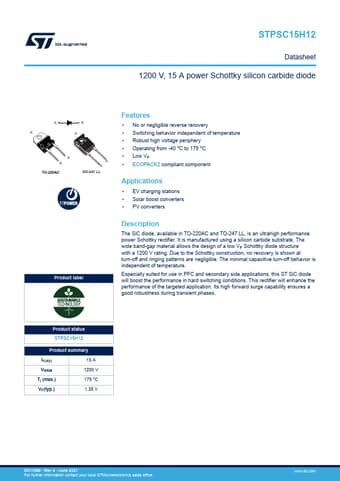

Preview of STPSC15H12 PDF

Datasheet Details

Part number:

STPSC15H12

Manufacturer:

STMicroelectronics ↗

File Size:

293.09 KB

Description:

1200v power schottky silicon carbide diode.
