STPSC1006

Schottky silicon carbide diode

STPSC1006 Features

* No or negligible reverse recovery

* Switching behavior independent of temperature

* Particularly suitable in PFC boost diode function Description The SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band gap mate

STPSC1006 General Description

The SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band gap material allows the design of a Schottky diode structure with a 600 V rating. Due to the Schottky construction no recovery is shown at turn-off and ringing patterns.

STPSC1006 Datasheet (92.19 KB)

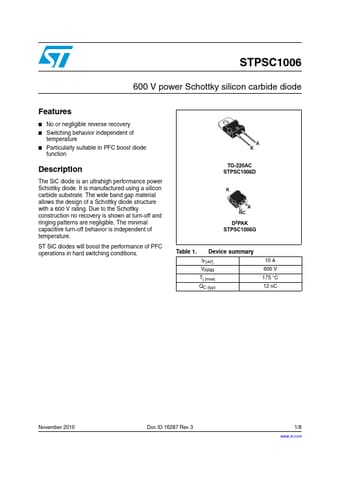

Preview of STPSC1006 PDF

Datasheet Details

Part number:

STPSC1006

Manufacturer:

STMicroelectronics ↗

File Size:

92.19 KB

Description:

Schottky silicon carbide diode.
