STTH100W04C Datasheet, Rectifier, STMicroelectronics

STTH100W04C Features

• Rectifier
• Ultrafast switching
• Low reverse recovery current
• Low thermal resistance
• Reduces switching losses
• ECOPACK®2 compliant component

PDF File Details

Part number:

STTH100W04C

Manufacturer:

STMicroelectronics ↗

File Size:

81.94kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH100W04CW, uses ST Turbo 2, 400 V technology. It is especially suited to be used for DC/DC and DC/AC converters in secondary s

STTH100W04C Application

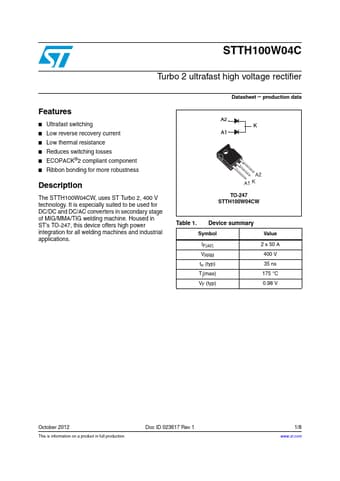

• Applications Datasheet  production data A2 K A1 A2 A1 K TO-247 STTH100W04CW Table 1. Device summary Symbol Value IF(AV) VRRM trr (typ) Tj(max
