STTH2R02-Y

Automotive ultrafast recovery diode

STTH2R02-Y Features

* AEC-Q101 qualified

* Very low conduction losses

* Negligible switching losses

* Low forward and reverse recovery times

* High junction temperature

* PPAP capable

* ECOPACK2 compliant Applications

* High frequency inverters

* F

STTH2R02-Y General Description

This 2 A, 200 V uses ST's 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor circuits. DS6945 - Rev 3 - July 2020 For further information contact your local STMicroelectronics sales office. www.st.com STTH2R02-Y Characteristics 1 Character.

STTH2R02-Y Datasheet (189.09 KB)

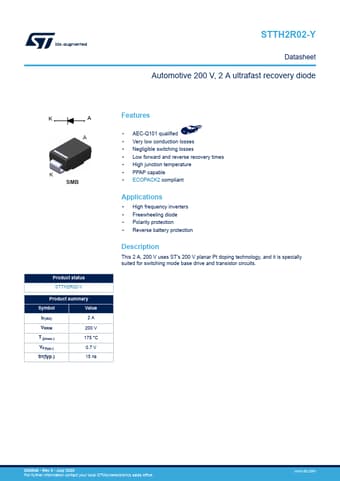

Preview of STTH2R02-Y PDF

Datasheet Details

Part number:

STTH2R02-Y

Manufacturer:

STMicroelectronics ↗

File Size:

189.09 KB

Description:

Automotive ultrafast recovery diode.
STTH2R02-Y Datasheet Automotive 200 V, 2 A ultrafast recovery diode K A A K SMB Product status STTH2R02-Y Product summary Symbol Value IF(AV).
